Variable Speed Buffer Build/Speed Kills/Part One
I've been working on this Variable Speed Buffer Project which I now call 'My Build' for several months now.
I wanted the 'help' that a buffer can provide without the Speed or at least Speed that I could vary thus providing more control of the heat buildup.
If it wasn't for the Wisdom/Experience and Patience of a Member (who at this point in time wishes to remain Anonymous so I'll call him/Pee Wee Herman/PWH for short) and Who I am Very Proud To Call My Friend/This Variable Speed Buffer either wouldn't have happened at all or it would have been a 'Shabby Mess' and all because of my inexperience and lack of knowledge!
Time and Time Again when I would thank him for his help he would reply to the effect;
It's your build, you designed it, I have merely offered suggestions.
With my heartfelt thanks for all of the time/advice/links etc that my friend has provided to make this build what it is and how it performs I present my Homemade Variable Speed Buffer;
Attachment 173458
Well Ok, it's not the finished build but this is where I started. An Antique Grinder with poured Babbitt bearings. I knew that I couldn't afford to have those re-poured so I went with Pillow Block Bearings.
I wanted the cast Iron Base for Mass/Weight thus more Stability and less Vibration. Here it is after a $10 run through an acid washer at my local automotive shop.
Attachment 173459

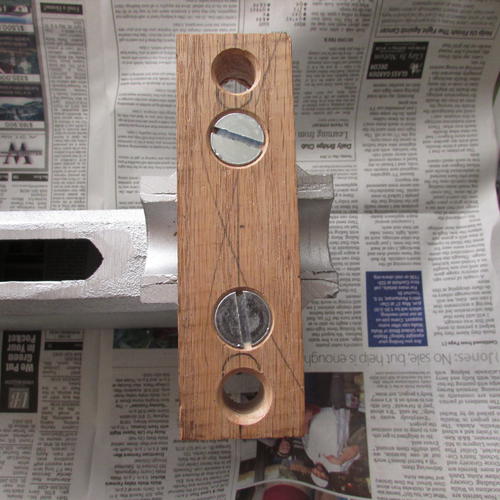

I made the adapter to mate the base with the Pillow Block Bearings out of Oak.
Attachment 173460

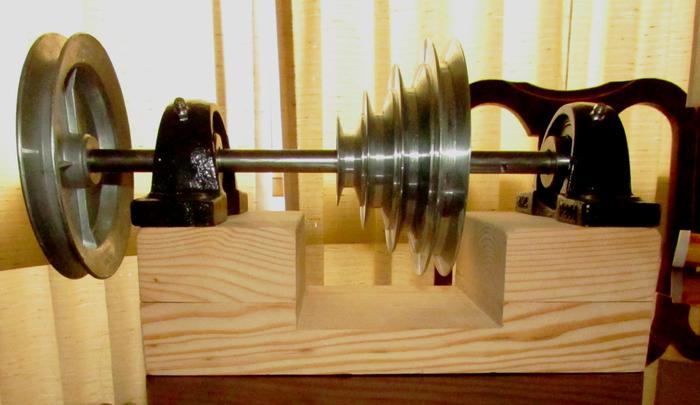

I purchased two step pulleys. The first one will serve as the speed reducer the second one on the final drive. Since I needed clearance not only for the first driven pulley but the others here's what my very good friend helped me make in his wood shop.
Attachment 173461
Ok so here's the basic layout.
Attachment 173462
Courtesy of PWH/Here's how the speeds should work. The attached link is a Wonderful Tool. You plug in the motor speed, the driver pulley size, the driven pulley size and the distance between the shafts and it not only gives you the RPM of the driven shaft but what size belt you will need.
The motor is a 1725 RPM 3/4 HP that I've had laying around for years. The Driver Pulley on the motor is 2". The Driven Pulley on the Speed Reducer is 5".
Using the online calculator that PWH supplied the shaft for the speed reducer should be turning at 690 RPM.
Then the 2" to the 6" should be 230 RPM.
The 3" to the 5" should be 414 RPM.
The 4" to 4" should be 690 RPM
The 5" to 3" should be 1150 RPM.
I can also 'play' with the pulleys on the motor and the first driven pulley to change either faster or slower.
Here's the link to the online calculator:
Pulley, Diameter and Belt Size Calculator
4 Attachment(s)
Variable Speed Buffer Build/Speed Kills/Part Two
Here's some pictures of the Build. I may make some drop over guards to cover the belts and I have leftover laminate to cover the plywood if I do so.
Attachment 173463
Attachment 173464
(No the belt is not out of alignment! It's just the camera angle.)
Attachment 173465
The 4" spiral sewn buffer pads are held in place with these:
Attachment 173468
I'm looking forward to trying it out. I would call it 'semi' portable as it has to weigh about 100 LBS. I will more than likely have it on top of my vintage table saw in my very cluttered garage for now. My wood working friend and I are going to keep our eyes out for a used bathroom vanity to make a base for it. That should provide a good height to work with and have drawers etc for storing compounds/buffer wheels etc.
I purchased the pillow block bearings online from; The Big Bearing Store.
http://www.thebigbearingstore.com/
I highly recommend them. When I ordered the bearings I accidentally hit 3 instead of 4 and didn't notice until I got an email saying that my order would be shipped soon. I immediately contacted their customer service told them of my mistake and asked if it was too late to correct it.
Anita wrote back saying that she would hold the order and all I needed to do was use the PayPal to purchase the extra bearing and that there would be no extra charge for shipping.
I thanked her and told her a little about the build, she asked to be kept up to date and I have.
This buffer runs smooth as silk. The old motor has a bit of noise to it but everything else is sooooo quiet!
Well That's That I hope all will enjoy my Build. :shrug:
