The Butchered Blade

Quote:

---

Originally Posted by sharptonn

That is exactly how I make them too! :rofl2:

---

Great Minds

Quote:

---

Originally Posted by JOB15

I tried to make a wedge today. Tried being the operative word .

The horn scales I purchased off ebay came with a horn square spacer piece , so I tried sanding it into a wedge on some glass paper.

It's near impossible to get it tapered and flat at the same time.

In the end I had no choice but to use an old W&B lead wedge that is way to thin and protrudes , so when I sand it flush I will be hitting the sheen on the horn scales..

I've drilled the holes and its being glued in to place before I pin it . I'm not sure why I'm gluing it , I think I could have just pinned it.

Am I missing an obvious fix or does anyone have any advise for me. Apart from ,"buy some machinery!" :D

Attachment 213009

---

Okay, wedges can be a tricky one to figure out. Just takes some trial and error. That said I'll tell you what I do.
Figure out where you want your blade to sit (best done with calipers): high up then measure lower on the blade the measurement will be smaller. Sitting lower in the scales measure higher up the measurement will be greater.
Then take two measurements of the tang about equal to the length of the wedge (lets say it's half an inch).. one measurement a quarter inch in front of the pivot hole and one measurement a quarter inch behind pivot hole. This tells you your tang taper. Let's say it's a difference of 3 mm, it could be more or less depending on the blade.
This means the back of the wedge needs to be 3mm less than the front of the wedge. So when sanding, take periodic measurements often to get it right.
Next get a piece of glass. Put it on a very flat surface. Get sand paper, start with 220 and move up in grit as you get closer. Usually ending with 400 grit.
The pressure you apply is key. Put more pressure on the back end of wedge, not too much pressure. Be patient. Too much pressure will cause the surface to be not flat.
The hard surface underneath is necessary for flat surface and crisp edges.
You want the wedge to have extra space all around, and when you test fit it with a hex head nut and bolt with washers, it is then when the process of getting the edges flush begins.
Always start with a wedge of greater dimensions on every side than final product.

Edit: take care to hold the sand paper flat, masking tape works well. If the sand paper buckles or raises up then it will dull the edge of the wedge. A little ball of masking tape on top of wedge helps you hold it well.

I use a similar method to MikeT, except I put my wedge to be on a small piece of wood with carpet tape. It makes it way easier to hang onto. Part of what makes sanding a wedge challenging is trying to hold it and get some even pressure.

I usually only taper one side, doublestick tape on a large tongue depressor on a disc sander. Problem with it is it seems to be all trial and error. A Pita most of the time. UNLESS I have an old one in the pile that will work. That works a treat! :D

Quote:

---

Originally Posted by RezDog

I use a similar method to MikeT, except I put my wedge to be on a small piece of wood with carpet tape. It makes it way easier to hang onto. Part of what makes sanding a wedge challenging is trying to hold it and get some even pressure.

---

I tried it that way once but found it hard to take accurate measurements with my calipers, so I settled for the masking tape ball on top. That is true, holding onto it and applying the correct pressure to the side that needs it (to remove more or less) is the most challenging part.

Does anyone know how wedges were made originally? I'm guessing they were made by pouring molten lead into molds much like musket balls were cast.

Quote:

---

Originally Posted by MikeT

I tried it that way once but found it hard to take accurate measurements with my calipers, so I settled for the masking tape ball on top. That is true, holding onto it and applying the correct pressure to the side that needs it (to remove more or less) is the most challenging part.

---

Measurements with calipers? What's that? :rofl2: I am an 'eyeball' guy! HAR!

So a question for MikeB52; In using AJKenne's larger domes, I wonder if the small diameter of the inner collars he provides may allow them to sink into the horn resulting in flattening of the domes as peening? I thought about using some old inner collars of a larger size or using a thin brass spacer under them for insurance against this.

Quote:

---

Originally Posted by Leatherstockiings

Does anyone know how wedges were made originally? I'm guessing they were made by pouring molten lead into molds much like musket balls were cast.

---

Originally I have no idea. It is super easy to just hit lead with a hammer and make it a wedge. I do a mostly shaped with a hammer and them some minor refinement on sandpaper. It is so easy to work with it is my first choice in wedge most times.

Quote:

---

Originally Posted by MikeT

Okay, wedges can be a tricky one to figure out. Just takes some trial and error. That said I'll tell you what I do.
Figure out where you want your blade to sit (best done with calipers): high up then measure lower on the blade the measurement will be smaller. Sitting lower in the scales measure higher up the measurement will be greater.
Then take two measurements of the tang about equal to the length of the wedge (lets say it's half an inch).. one measurement a quarter inch in front of the pivot hole and one measurement a quarter inch behind pivot hole. This tells you your tang taper. Let's say it's a difference of 3 mm, it could be more or less depending on the blade.
This means the back of the wedge needs to be 3mm less than the front of the wedge. So when sanding, take periodic measurements often to get it right.
Next get a piece of glass. Put it on a very flat surface. Get sand paper, start with 220 and move up in grit as you get closer. Usually ending with 400 grit.
The pressure you apply is key. Put more pressure on the back end of wedge, not too much pressure. Be patient. Too much pressure will cause the surface to be not flat.
The hard surface underneath is necessary for flat surface and crisp edges.
You want the wedge to have extra space all around, and when you test fit it with a hex head nut and bolt with washers, it is then when the process of getting the edges flush begins.
Always start with a wedge of greater dimensions on every side than final product.

Edit: take care to hold the sand paper flat, masking tape works well. If the sand paper buckles or raises up then it will dull the edge of the wedge. A little ball of masking tape on top of wedge helps you hold it well.

---

Hope you don't mind me poking my nose in here chaps - but one thought about wedges when drilling them. If you put them on a flat surface and use a pillar drill you will not be drilling at 90 degrees. Now normally this will not create a problem but just occasionally if you have a problem blade that pulls to one side - you could also be fitting the wedge in a way that will make things worse.

To avoid this I drill only when I'm happy with the wedge angle - but I drill on a wedge shaped piece of wood to get as near to 90 degrees as makes no difference.

I use the stick and tape method for wedges as well, and drill the hole true to the taper.

Quote:

---

Originally Posted by sharptonn

So a question for MikeB52; In using AJKenne's larger domes, I wonder if the small diameter of the inner collars he provides may allow them to sink into the horn resulting in flattening of the domes as peening? I thought about using some old inner collars of a larger size or using a thin brass spacer under them for insurance against this.

---

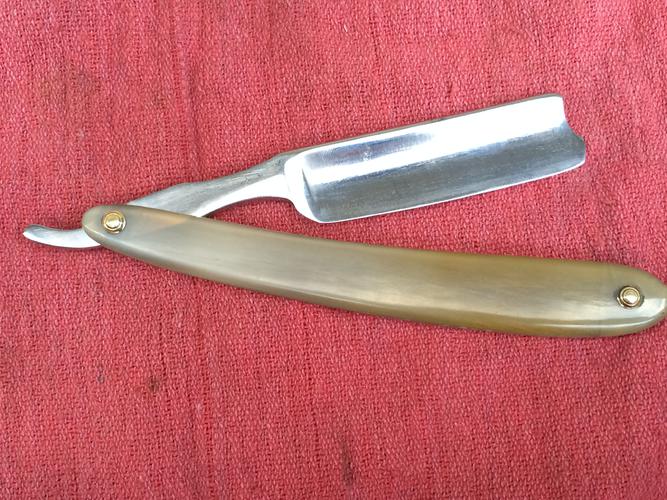

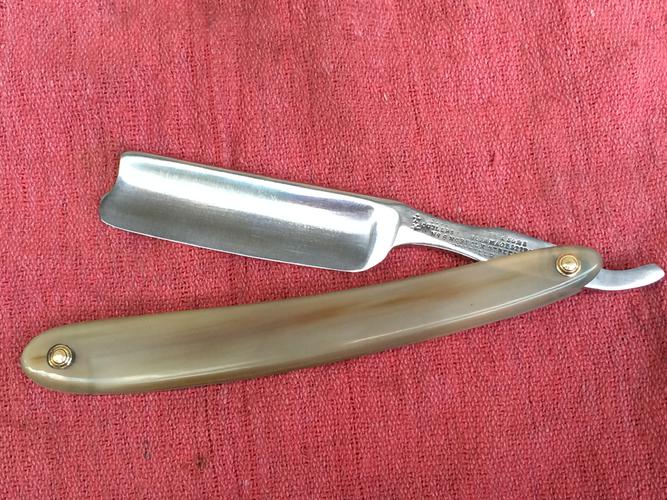

The smaller washers under the domes did not sink into the horn at all or negligibly. My domes stood proud on the completed works.
Attachment 213021Attachment 213022Attachment 213023
Please excuse the left over Mothers..;)
