Glad to know I'm not the only one who makes mistakes I later have to go back and correct (usually involving pinning). Live and learn.
Printable View
I have corrected some goofed up holes by putting a turning drill bit in and then torquing the scales to elongate the two holes in opposite directions. A little Vaseline on the pin and then fill the slop with CA, with tape on one side to keep it from running away. Once it is set, flip it and do the other side. The CA won’t stick to the pin and it corrects fairly easily. If you collars are the right size it will cover the error.
Rezdog speaks the truth.
Something to think about is the bottom pin may be bent causing this.
Looks like the pin-hole and the top are both low on the right side of the photo.
I also cut most my pin stock down to useable size. But I keep one about 6 inches and its put in a special place so it doesn't get bent. I use it just for this reason. Testing. I'm still fixing off-set holes from when I first got into this hobby. Thanks for the info Rez. A good one to know.
I’m pretty sure that one originally came from Richard.
A little something I put together tonight. Geneva Cutlery. The blade and scales were/are a little worn but they fit so nicely together I just had to pin them up.
Attachment 306791
A very close fit!
Attachment 306792
Attachment 306793

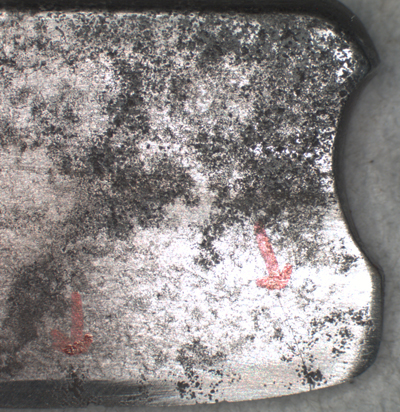

Had some time while some finish was drying so I pulled out my Frederick to see if it would take a bevel. Started with two layers of tape and went to three as the bevel was looking quite wide. Some of the smaller chips disappeared, but I was noticing a fair amount of pitting at the edge and then a crack showed it's ugly little face at the toe.
Attachment 306822 Attachment 306823
I think this could be saved with a bit of shortening into a spanish point but the pits have me most concerned there's several areas similar to the red arrow farthest from the tip. I'm not in a hurry on this one so maybe some high angle honing? Bread-knife? Just keep going with three layers and see where I wind up? I'm not going to mess with the tip until I know the edge is usable. Am I wasting my time? Appreciate your advice.
Attachment 306824
I have seen some amazing things with regrinds, but few people have the ability to get that much off, and keep a blade straight doing it by hand. It looks like it is beyond what I can do by hand. You may want to save that one for if you get a belt grinder or give it to someone for them to use for regrinding practice. It looks like there is a lot of ugliness and it looks like it goes deep. It may not even make a regrind. I have not reground that many blades so I am no expert.
